Elastobrake Saugnäpfe mit Balg

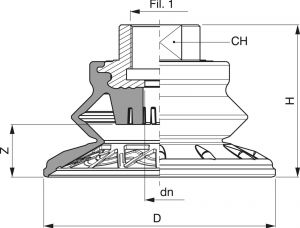

Art. | D | dn | Fil.1 | H | CH | Z |
---|---|---|---|---|---|---|
VTBA 25 | 25 | 6 | 1/4" | 25 | 17 | 5.8 |
VTBA 35 | 35 | 6 | 1/4" | 28 | 17 | 9 |
VTBA 45 | 45 | 6 | 1/4" | 29 | 17 | 10 |
VTBA 55 | 55 | 8 | 3/8" | 37 | 22 | 11.5 |
VTBA 65 | 65 | 8 | 3/8" | 41.5 | 22 | 14.5 |
VTBA 85 | 85 | 8 | 3/8" | 50 | 22 | 22 |
VTBA 105 | 105 | 8 | 3/8" | 57 | 22 | 26 |
VTBA 135 | 135 | 10 | 3/8" | 69.7 | 22 | 32 |

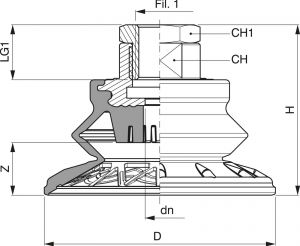

Art. | D | dn | Fil.1 | H | LG1 | CH | CH1 | Z |
---|---|---|---|---|---|---|---|---|
VTBB 25 | 25 | 6 | 3/8" | 41 | 9.5 | 17 | 22 | 5.8 |
VTBB 35 | 35 | 6 | 3/8" | 44 | 9.5 | 17 | 22 | 9 |
VTBB 45 | 45 | 6 | 3/8" | 44 | 9.5 | 17 | 22 | 10 |
VTBB 55 | 55 | 8 | 1/4" | 42 | 15 | 22 | 19 | 11.5 |
VTBB 65 | 65 | 8 | 1/4" | 46.5 | 15 | 22 | 19 | 14.5 |
VTBB 85 | 85 | 8 | 1/4" | 55 | 15 | 22 | 19 | 22 |
VTBB 105 | 105 | 8 | 1/4" | 62 | 15 | 22 | 19 | 26 |
VTBB 135 | 135 | 10 | 1/4" | 74.7 | 15 | 22 | 19 | 32 |

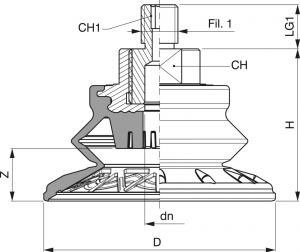

Art. | D | dn | Fil.1 | H | LG1 | CH | CH1 | Z |
---|---|---|---|---|---|---|---|---|
VTBC 25 | 25 | 6 | 1/4" | 25 | 10 | 17 | 6 | 5.8 |
VTBC 35 | 35 | 6 | 1/4" | 28 | 10 | 17 | 6 | 9 |
VTBC 45 | 45 | 6 | 1/4" | 29 | 10 | 17 | 6 | 10 |
VTBC 55 | 55 | 8 | 1/4" | 37 | 10 | 22 | 6 | 11.5 |
VTBC 65 | 65 | 8 | 1/4" | 41.5 | 10 | 22 | 6 | 14.5 |
VTBC 85 | 85 | 8 | 1/4" | 50 | 10 | 22 | 6 | 22 |
VTBC 105 | 105 | 8 | 1/4" | 57 | 10 | 22 | 6 | 26 |
VTBC 135 | 135 | 10 | 1/4" | 69.7 | 10 | 22 | 6 | 32 |

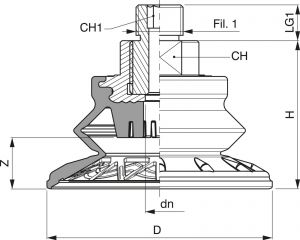

Art. | D | dn | Fil.1 | H | LG1 | CH | CH1 | Z |
---|---|---|---|---|---|---|---|---|
VTBD 25 | 25 | 6 | M10 | 25 | 12 | 17 | 4 | 5.8 |
VTBD 35 | 35 | 6 | M10 | 28 | 12 | 17 | 4 | 9 |
VTBD 45 | 45 | 6 | M10 | 29 | 12 | 17 | 4 | 10 |
VTBD 55 | 55 | 8 | M10 | 37 | 12 | 22 | 4 | 11.5 |
VTBD 65 | 65 | 8 | M10 | 41.5 | 12 | 22 | 4 | 14.5 |
VTBD 85 | 85 | 8 | M10 | 50 | 12 | 22 | 4 | 22 |
VTBD 105 | 105 | 8 | M10 | 57 | 12 | 22 | 4 | 26 |
VTBD 135 | 135 | 10 | M10 | 69.7 | 12 | 22 | 4 | 32 |
Art. | D | dn | Fil.1 | H | LG1 | CH | CH1 | Z |
---|---|---|---|---|---|---|---|---|
VTBE 25 | 25 | 6 | M14x1.5 | 25 | 12 | 17 | 6 | 5.8 |
VTBE 35 | 35 | 6 | M14x1.5 | 28 | 12 | 17 | 6 | 9 |
VTBE 45 | 45 | 6 | M14x1.5 | 29 | 12 | 17 | 6 | 10 |
VTBE 55 | 55 | 8 | M14x1.5 | 37 | 12 | 22 | 6 | 11.5 |
VTBE 65 | 65 | 8 | M14x1.5 | 41.5 | 12 | 22 | 6 | 14.5 |
VTBE 85 | 85 | 8 | M14x1.5 | 50 | 12 | 22 | 6 | 22 |
VTBE 105 | 105 | 8 | M14x1.5 | 57 | 12 | 22 | 6 | 26 |
VTBE 135 | 135 | 10 | M14x1.5 | 69.7 | 12 | 22 | 6 | 32 |

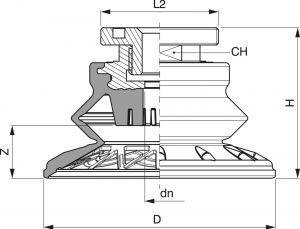

Art. | D | dn | H | CH | L2 | Z |
---|---|---|---|---|---|---|
VTBF 25 | 25 | 6 | 28.2 | 17 | 32 | 5.8 |
VTBF 35 | 35 | 6 | 31.2 | 17 | 32 | 9 |
VTBF 45 | 45 | 6 | 31.2 | 17 | 32 | 10 |
VTBF 55 | 55 | 8 | 36.5 | 22 | 32 | 11.5 |
VTBF 65 | 65 | 8 | 41 | 22 | 32 | 14.5 |
VTBF 85 | 85 | 8 | 49.5 | 22 | 32 | 22 |
VTBF 105 | 105 | 8 | 56.5 | 22 | 32 | 26 |
VTBF 135 | 135 | 10 | 69.2 | 22 | 32 | 32 |
