Ovale Elastobrake Saugnäpfe mit Balg
Ovale Elastobrake Saugnäpfe mit Balg

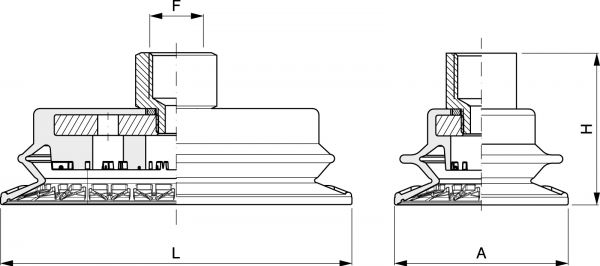

| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBA 65 | 65 | 33 | 1/8" | 19.85 |
| VTOBA 85 | 85 | 42 | 1/8" | 23.2 |
| VTOBA 115 | 115 | 59 | 1/4" | 27.7 |
| VTOBA 145 | 145 | 72 | 1/4" | 30.65 |

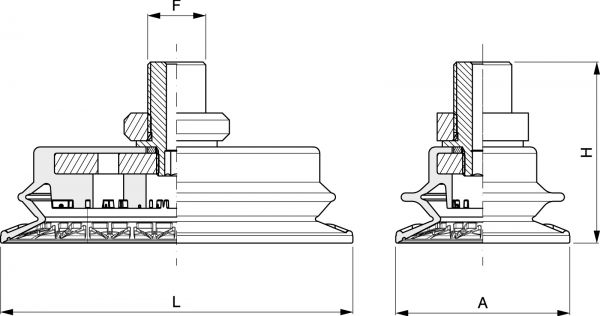

| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBB 65 | 65 | 33 | 1/4" | 33.35 |
| VTOBB 85 | 85 | 42 | 1/4" | 36.7 |
| VTOBB 115 | 115 | 59 | 1/4" | 41.3 |
| VTOBB 145 | 145 | 72 | 1/4" | 44.25 |
| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBC 65 | 65 | 33 | 3/8" | 34.35 |
| VTOBC 85 | 85 | 42 | 3/8" | 37.7 |
| VTOBC 115 | 115 | 59 | 3/8" | 42.2 |
| VTOBC 145 | 145 | 72 | 3/8" | 45.15 |
| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBD 65 | 65 | 33 | 1/4" | 34.35 |
| VTOBD 85 | 85 | 42 | 1/4" | 37.7 |
| VTOBD 115 | 115 | 59 | 1/4" | 42.2 |
| VTOBD 145 | 145 | 72 | 1/4" | 45.15 |
| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBE 65 | 65 | 33 | M10x1.5 | 38.35 |
| VTOBE 85 | 85 | 42 | M10x1.5 | 41.7 |
| VTOBE 115 | 115 | 59 | M10X1.5 | 46.2 |
| VTOBE 145 | 145 | 72 | M10x1.5 | 49.15 |
| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBF 65 | 65 | 33 | M14x1.5 | 40.35 |
| VTOBF 85 | 85 | 42 | M14x1.5 | 43.7 |
| VTOBF 115 | 115 | 59 | M14x1.5 | 48.2 |
| VTOBF 145 | 145 | 72 | M14x1.5 | 51.15 |

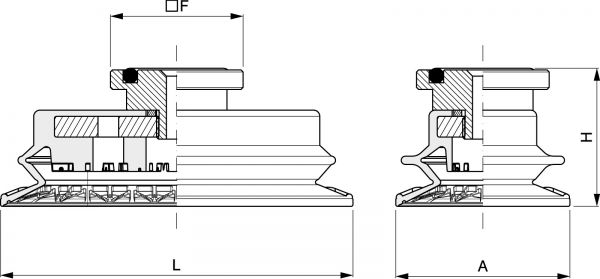

| Art. | L | A | F | H |
|---|---|---|---|---|
| VTOBG 65 | 65 | 33 | 32 | 29.95 |
| VTOBG 85 | 85 | 42 | 32 | 33.3 |
| VTOBG 115 | 115 | 59 | 32 | 37.8 |
| VTOBG 145 | 145 | 72 | 32 | 40.75 |
