Vacuum pumps without lubrication - 6-10 mc/h

Characteristics

Gamavuoto 6 and 10 m3/h oil-less pumps do not require lubrication thanks to the use of vanes and covers in special graphite and they strongly reduce maintenance operations since no topping up is required. Equipped with silencers which strongly reduce the noise level, these pumps can also be requested with a single-phase motor.

Installation

Connect up the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction. WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.

Vacuum pumps without lubrication - 6-10 mc/h
bvs_6_CAT

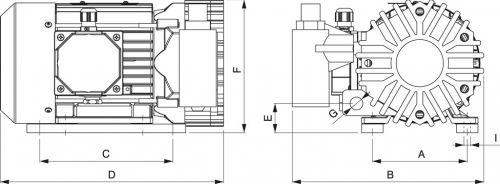

Art. Volume aspiratoVacuum flowVakuum-Durchsatz Press. finaleFinal pressure ABSEnddruck VelocitàRpmGeschwin-digkeit Potenza motoreMotor powerMotorleistung PesoWeightGewicht A B C D F G I
50 Hz
Mc/h		 60 Hz
Mc/h		 mbar (ass.) 50 Hz
g/min		 60 Hz
g/min		 50 Hz
Kw		 60 Hz
Kw		 kg
GPOS 6 6 7.2 100 1450 1700 0.25 0.30 12 115 210 155 270 155 1/4" 8.5
GPOS 10 10 12 100 1450 1700 0.37 0.44 14 115 185 155 290 155 3/8" 8.5
