Vacuum pumps with lubrication G series - 40-80 mc/h

Vacuum pumps with lubrication G series - 40-80 mc/h

Characteristics

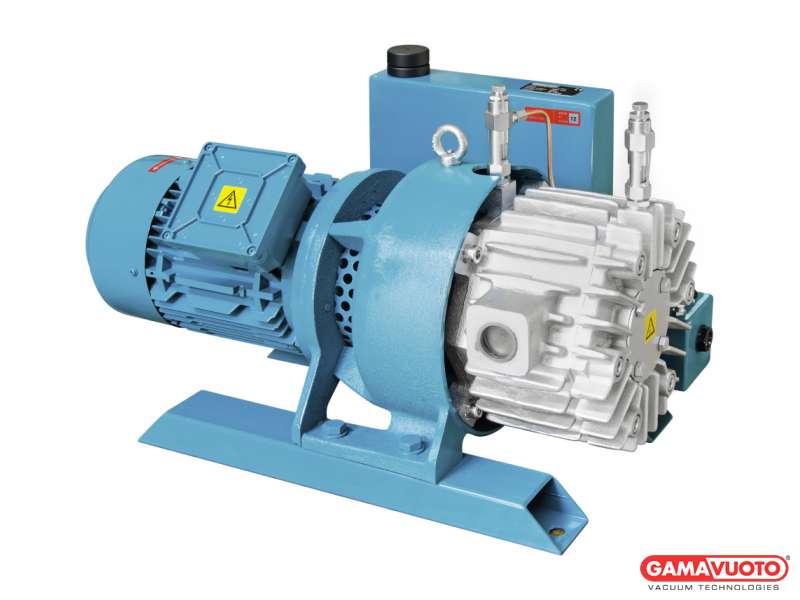

Gamavuoto 40 to 80 m3/h lubricated vacuum pumps are characterized by a very simple design, by a strong, compact body and by a simple but efficient air cooling system. In the “G” series the electric motor is connected to the body of the pump through a flexible connector and this allows the use of different kinds of motors. They require only the bare minimum of maintenance since the recycling lubrication allows the oil to be changed or topped up only according to the actual operating times.

Installation

Connect up the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction. WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.

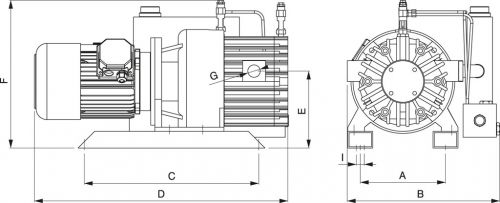

Art. Volume aspiratoVacuum flowVakuum-Durchsatz Press. finaleFinal pressure ABSEnddruck VelocitàRpmGeschwindigkeit Potenza motoreMotor powerMotorleistung PesoWeightGewicht A B C D E F G I Viscosità olioOil viscosityÖlviskosität
50 Hz
Mc/h
60 Hz
Mc/h
mbar/ass 50 Hz
g/min
60 Hz
g/min
50 Hz
Kw
60 Hz
Kw
kg
GPOL 40/G 40 48 65 1450 1700 1.1 1.3 49 210 365 415 520 185 350 1” 12.5 ISO 100
GPOL 50/G 50 60 65 1450 1700 1.5 1.75 55 210 365 415 560 185 350 1" 12.5
GPOL 65/G 65 78 65 1450 1700 1.5 1.75 60 210 365 415 580 185 350 1” 12.5
GPOL 80/G 80 96 65 1450 1750 2.2 2.6 80 210 365 415 640 185 360 1-1/2" 12.5 ISO 150
