Characteristics
Gamavuoto 105 m3/h lubricated vacuum pumps are characterized by a very simple design, by a strong, compact body and by a simple but efficient air cooling system. In the “G” series the electric motor is connected to the body of the pump through a flexible connector and this allows the use of different kinds of motors and there is also an oil separator filter cartridge an interchangeable oil separator filter cartridge placed on the exhaust that helps to reduce practically to zero smoke emissions.
They require only the bare minimum of maintenance since the recycling lubrication allows the oil to be changed or topped up only according to the actual operating times.
Installation
Connect up the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction
WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.

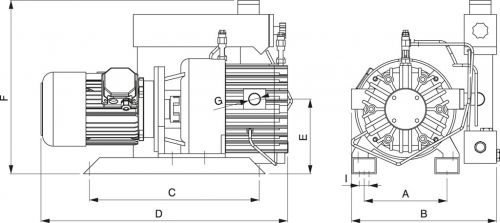

| Art. | Volume aspiratoVacuum flow | Press. finaleFinal pressure ABS | VelocitàRpm | Potenza motoreMotor power | PesoWeight | A | B | C | D | E | F | G | I | Viscosità olioOil viscosity | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Hz Mc/h |
60 Hz Mc/h |
mbar/ass | 50 Hz g/min |
60 Hz g/min |
50 Hz Kw |
60 Hz Kw |
kg | ||||||||||
| GPOL 105/GD | 105 | 126 | 65 | 1450 | 1700 | 3 | 3.5 | 90 | 210 | 410 | 415 | 690 | 185 | 450 | 1-1/2" | 12.5 | ISO 150 |
