Multi-stage vacuum generators mod. AVLD 128
Multi-stage vacuum generators mod. AVLD 128

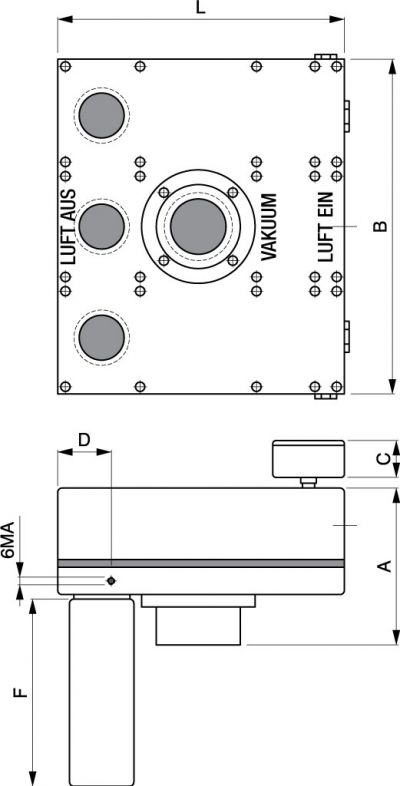

| Art. | A | B | C | L | F | Ai Ø | Ao Ø | V Ø | ØV Att. | D |
|---|---|---|---|---|---|---|---|---|---|---|
| Air in | Air out | Vacuum | VuotometroVacuum gaugeVakuummeter | |||||||
| AVL 128 | 138 | 295 | 43 | 250 | 180 | 1/2" | 1-1/2" x3 | 2" | 1/4" | 221 |
| CaratteristicheTechnical detailsEigenschaften | AVLD 128 |
|---|---|
| Pressione ottimale d’eserc. (Bar max 7)Optimum working pressure (Bar max 7)Optimaler Betriebsdruck (Bar max 7) | 6 |
| Consumo d’aria Nl/min a 4 BarAir consumption Nl/min at 4 BarLuftverbrauch Nl/min bei 4 Bar | 2000 |
| Vuoto max raggiungibile -kPa a 6 BarMax. vacuum possible -kPa 6 BarMax. erreichbares Vakuum -kPa bei 6 Bar | 90 |
| Portata (aspirazione) Nl/min. a 6 Bar(Suction) capacity Nl/min. at 6 BarDurchsatz (Ansaugung) Nl/min. bei 6 Bar | 9600 |
