Fittings
Fittings
These fittings are ideal for the attachment of flexible TVF tubes. They differ from the previous tubes in that they have a perfect vacuum seal, without the need for the traditional rubber link bands, and because they are easy and quick to mount. Material: self-extinguishing polypropylene.

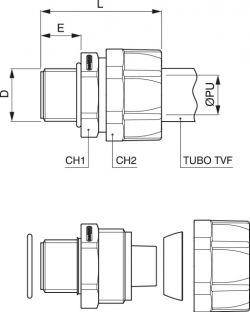

| Art. | PU | D | CH1 | CH2 | L | E |
|---|---|---|---|---|---|---|
| RP 1/4" | 10 | 1/4" | 24 | 27 | 40 | 12.5 |
| RP 3/8" | 12 | 3/8" | 26 | 29 | 42 | 13.5 |
| RP 1/2" | 16 | 1/2" | 30 | 34 | 48 | 16 |
| RP 3/4" | 21 | 3/4" | 35 | 39 | 50 | 16 |
| RP 1" | 27 | 1" | 45 | 48 | 55 | 18 |
