Spherical suction cups without support
Spherical suction cups without support

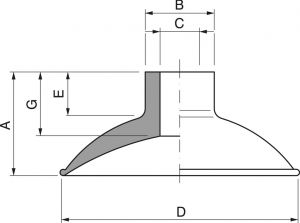

| Art. | A | BØ | CØ | DØ | E | FØ | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| V6 | 8 | 3 | 1.5 | 6 | 6 | - | 7 | - | - |
| V8 | 8 | 5 | 3 | 8 | 6 | - | 7 | - | - |
| V10 | 11 | 8 | 4 | 10 | 8 | - | 9 | - | - |
| V10L | 10.5 | 7 | 5 | 10 | 8.5 | - | 8.6 | - | - |
| V12 | 11 | 8.5 | 4 | 12 | 8 | - | 9 | - | - |
| V12C | 11 | 8 | 4 | 12 | 8 | 9 | |||
| V15 | 12 | 8 | 4 | 15 | 8 | - | 10 | - | - |
| V18 | 12 | 8 | 4 | 18 | 8 | - | 10 | - | - |
| V20 | 13 | 8 | 4 | 20 | 8.5 | - | 10 | - | - |
| V22 | 13 | 8 | 4 | 22 | 8 | - | 10 | - | - |
| V25/C | 8 | 12 | 6 | 25 | 2 | - | 4 | - | - |
| V25/L | 16 | 12 | 6 | 25 | 10 | - | 11.5 | - | - |
| V30/C | 8 | 12 | 6 | 30 | 1 | - | 4 | - | - |
| V30/L | 16 | 12 | 6 | 30 | 10 | - | 12.5 | - | - |
| V35/C | 10 | 12 | 6 | 35 | 1.5 | - | 5 | - | - |
| V35/L | 17 | 15 | 10 | 35 | 10 | - | 12.5 | - | - |
| V45/C | 17 | 15 | 10 | 45 | 6 | - | 9.5 | - | - |
| V45/L | 20 | 15 | 10 | 45 | 10 | - | 14 | - | - |
| Art. | A | BØ | CØ | DØ | E | FØ | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| V60 | 22 | 15 | 10 | 59 | 5 | 25 | - | 10 | 3 |
| V65 | 24 | 15 | 10 | 65 | 5 | 25 | - | 13 | 2.5 |
| V87 | 40 | 25 | 15 | 87 | 16 | 25 | - | 22 | 4 |
